Heat Shrink

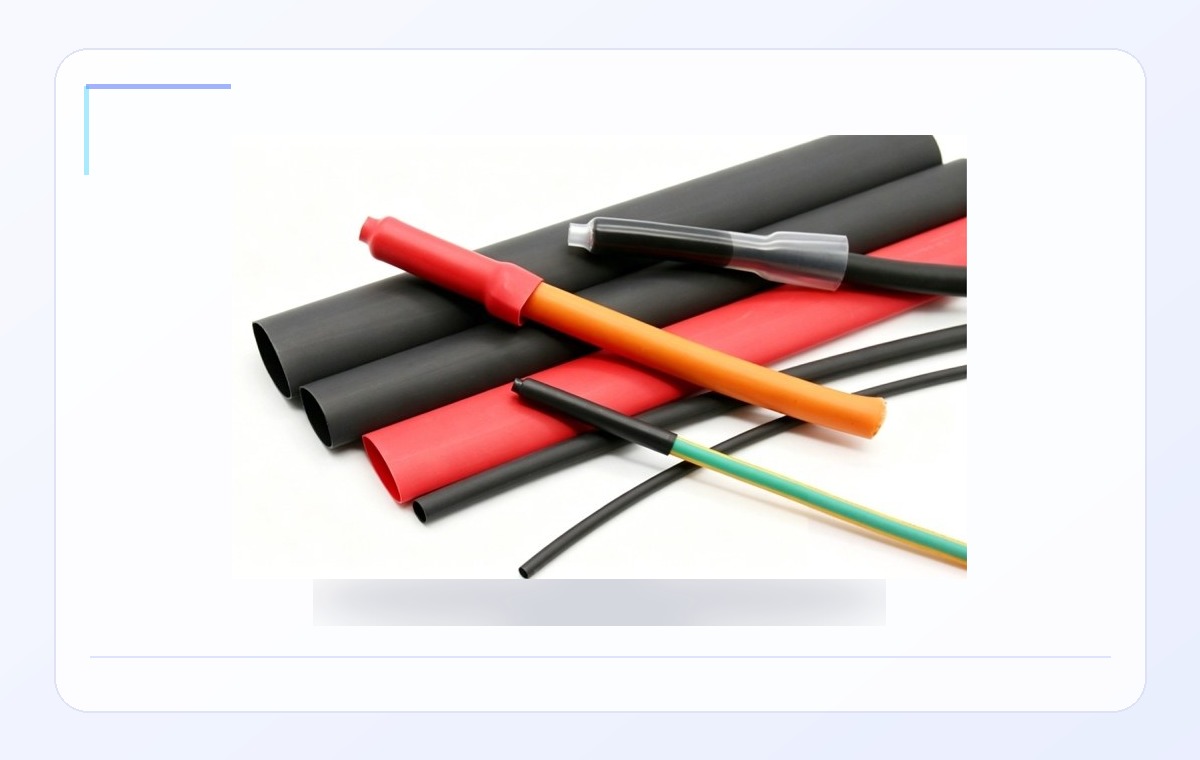

150 C Heat Shrink Tubing
Halogen-free, flame-retardant high-temperature tubing for electronics, communications, vehicles, ships and aircraft manufacturing.
Heat Shrink
150 C Heat Shrink Tubing
150 C heat shrink tubing for high-temperature wire protection, flame-retardant insulation and durable harness finishing in demanding OEM assemblies.
Heat Shrink
Typical Parameters
| Parameter | Typical value |
|---|
| Material | Radiation-crosslinked halogen-free polyolefin |
|---|
| Working temperature | -55 C to 150 C |
|---|
| Voltage / dielectric | 600 V class, 2500 V / 1 min withstand |
|---|
| Size range | Heat shrink sizes from 0.6/0.35 to 150/70 mm |
|---|
| Structure | Single-wall high-temperature heat shrink tubing |
|---|
OEM note: Detailed size table, validation data and custom packing can be confirmed by project.
Why this product
- Built for high-temperature heat shrink tubing projects that exceed general-purpose wire protection needs.
- Supports OEM teams comparing flame retardancy, heat aging and stable shrink performance.
- Useful for electronics, vehicle wiring, communications and compact high-heat cable assemblies.
Typical applications
- Vehicle, ship and aircraft harness protection
- Electronics, communications and industrial cable finishing
- High-temperature wiring and export OEM assembly projects
Frequently Asked Questions
Frequently Asked Questions
What is 150 C Heat Shrink Tubing used for?
150 C Heat Shrink Tubing is used for electrical insulation, cable branch covering, terminal protection, harness finishing and sealing or strain relief when the selected construction fits the project.
How should I compare 150 C Heat Shrink Tubing options?
Compare shrink ratio, recovered size, wall type, adhesive requirement, environment, installation process and the validation standard required by the customer.
What should I send for 150 C Heat Shrink Tubing samples?
Send the cable or terminal size, starting and recovered diameter target, length, color, sealing requirement, environment and expected assembly method.
What standards does 150 C heat shrink tubing meet?
WCW Flex 150 C heat shrink tubing is recognized under UL 224, CAN/CSA C22.2 No.198.1-99 and AMS-DTL-23053/5 Class 1. It has a 2:1 shrink ratio with initiating shrink at >=84 C and full shrink at >=135 C, and is RoHS compliant with low smoke, flexible and flame-retardant properties.
What is the difference between 150 C heat shrink and standard heat shrink tubing?
150 C heat shrink tubing has a higher continuous-use temperature rating (150 C) and carries additional standards recognition (CAN/CSA and AMS-DTL) compared to standard heat shrink (125 C). Choose 150 C grade for automotive, aerospace or industrial applications needing higher temperature or military-spec compliance.
Is 150 C heat shrink tubing suitable for automotive applications?
Yes. The 150 C temperature class, AMS-DTL-23053/5 compliance and flame-retardant properties make it suitable for automotive wire harnesses, battery connections and under-hood insulation. For IATF 16949 projects, confirm the PPAP documentation and customer validation with the supplier.
